Op Amps - D2A Summing Amplifier
home

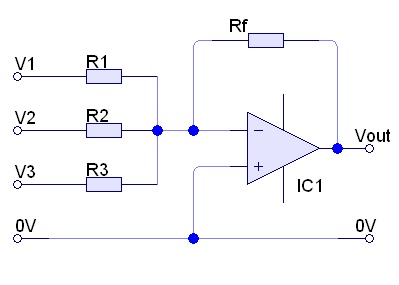

Calculate the output voltage (Vout) when:
Rf =
K
V1 =
V
, R1 =
K
V2 =
V
, R2 =
K
V3 =
V
, R3 =
K
Answers to 3 sig figs
Toggle the sign of Vout +/-
For the formula: click 'Help' at any time.
Click 'Submit' to check your answer.
V
_{out}
=
+
remember the sign
Score = 0
Show Calculator
You don't need a calculator!
Understand the principles and you can do this in your head.
However, if you do need some help, click below:-
